STD Photon emon shield
Mode: Editors' pick
- 0
Update time：
2021-04-08 07:09:18
Creation time：
2015-09-25 15:51:04
Description
Empty
Design Drawing

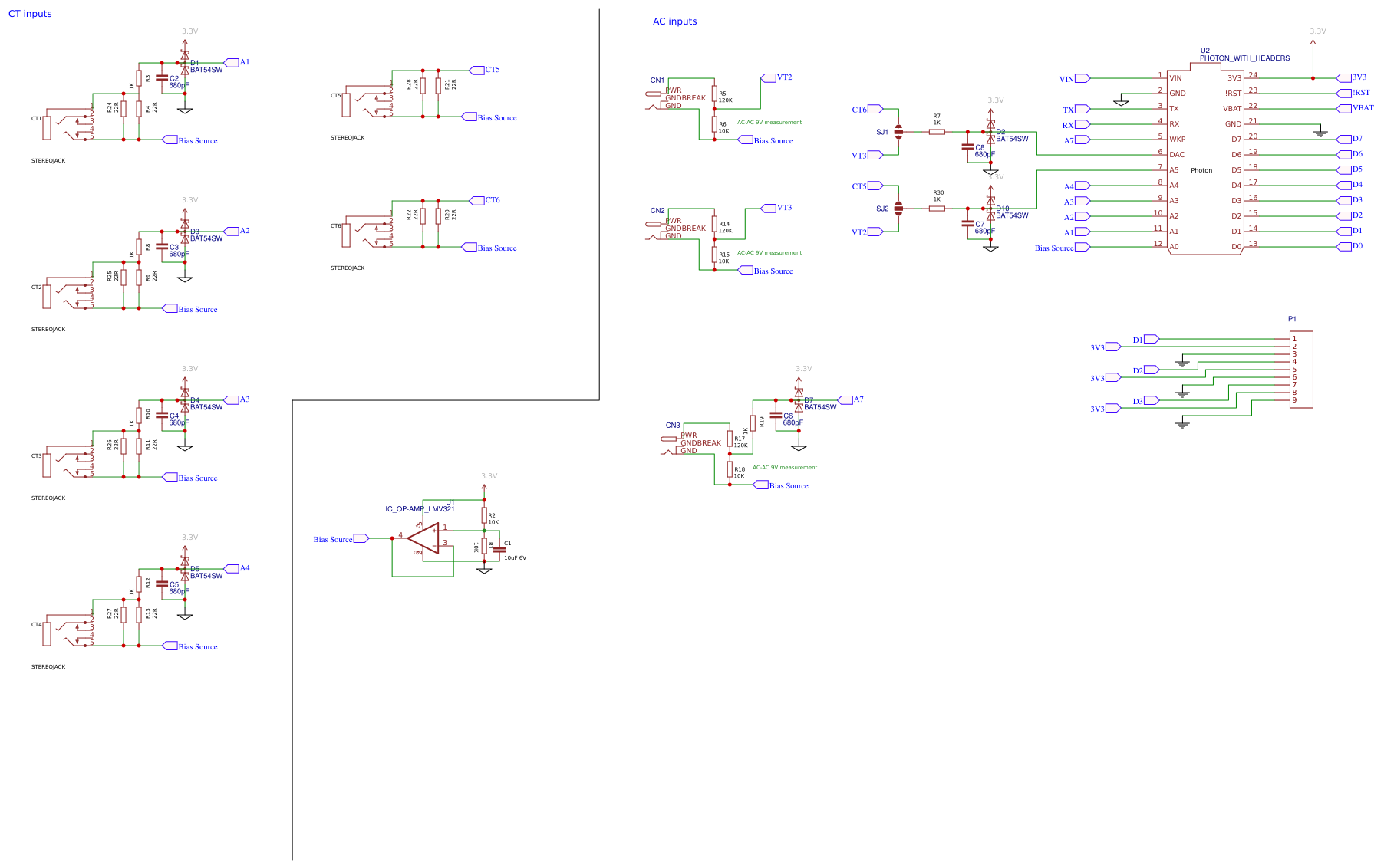

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 10K | R1,R2,R6,R18,R15 | R0603 | 5 |
| 2 | STEREOJACK | CT1,CT2,CT3,CT4,CT5,CT6 | STX3100 | 6 |
| 3 | 1K | R3,R7,R8,R10,R12,R19,R30 | R0603 | 7 |
| 4 | 10uF 6V | C1 | C0603 | 1 |
| 5 | IC_OP-AMP_LMV321 | U1 | SOT-23-5 | 1 |
| 6 | 22R | R4,R9,R11,R13,R21,R20 | R1206 | 6 |
| 7 | PHOTON_WITH_HEADERS | U2 | PHOTON | 1 |
| 8 | 120K | R5,R17,R14 | R0603 | 3 |
| 9 | BAT54SW | D1,D2,D3,D4,D5,D7,D10 | SOT323 | 7 |
| 10 | DCBARRELPTH | CN1,CN3,CN2 | DCJACK_2MM_PTH | 3 |
| 11 | 22R | R24,R25,R26,R27,R28,R22 | 02047 | 6 |
| 12 | SOLDERJUMPER_2WAYT | SJ1,SJ2 | SJ_2 | 2 |
| 13 | SIP9 | P1 | HDR1X9 | 1 |
| 14 | 680pF | C2,C3,C4,C5,C6,C7,C8 | 1206 | 7 |
