arvin-dc-voltage regulator - LM2576 with Tip147

1 year ago 331
  • Description
  • Documents
  • BOM
  • Attachments
  • Members
  • Comments

Description

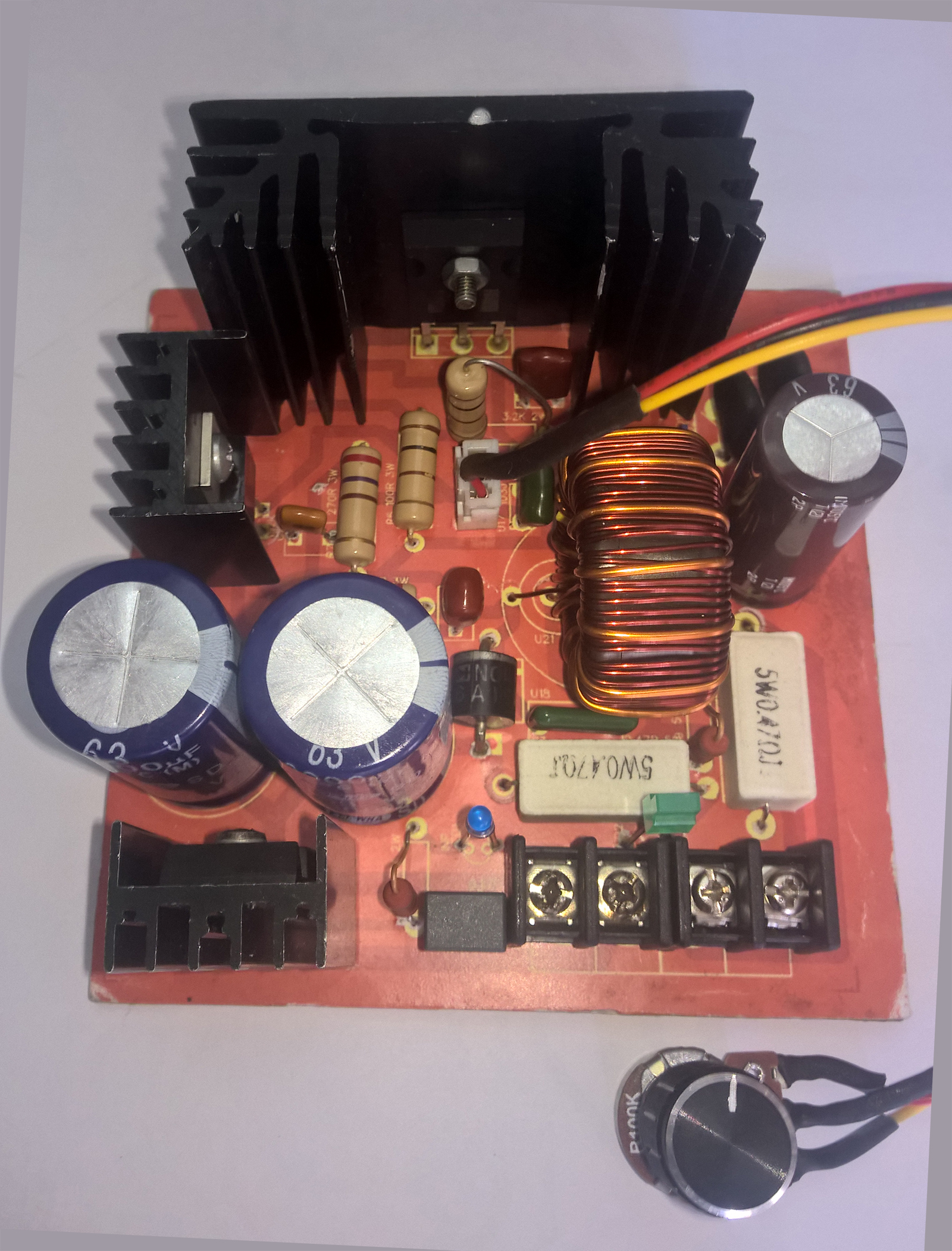

Voltage regulator with lm2576 and tip32 10A In,40 V To 1.2 > 36 = LM2576T in.60 V To 1.2 > 56 = LM2576HVT

Documents

Sheet_1

PCB - TIP147 & LM2576 HVT

BOM

ID Name Designator Footprint Quantity
1 LM2576HVT-ADJ U1 TO-220_5PIN-L10.67-W4.83-PITCH1.70-L 1
2 TIP147G TIP147G TO-247 1
3 100R-3W R1 AXIAL-0.3 1
4 270R-3W R2,R3 AXIAL-0.3 2
5 3.2K-2W R4 AXIAL-0.3 1
6 0.47R-5W R6,R5 AXIAL-0.3 2
7 5D15 NTC1,NTC2 MF72-5D15 2
8 100R R100 AXIAL-0.3 1
9 10K RANGE RES-ADJ_3386P 1
10 100K ADJUST RES-ADJ_3386P 1
11 150m L1 AXIAL-0.4 1
12 S30D45C SD1 TO-3P 1
13 1000uf-63V C04 CAP-D3.0XF1.5 1
14 Output 1.2 / 56 V P1 WJ128V-2P-5.0 1
15 103J C7,C6 RAD-0.1 2
16 223k C8 RAD-0.1 1
17 273k C9 RAD-0.1 1
18 392k C10 RAD-0.1 1
19 5.6K-2W R0,R7 AXIAL-0.3 2
20 INP LED1 LED-3MM/2.54 1
21 OUT LED2 LED-3MM/2.54 1
22 50M L2 AXIAL-0.4 1
23 10A D2 DO-35 1
24 4700uf-63V C02,C1 CAP-D3.0XF1.5 2
25 100N C5 RAD-0.1 1
26 Input 60V-10A P2 WJ128V-2P-5.0 1
27 0.1uf C3 RAD-0.1 1
