Switch component side
153 8
romeo 6 months ago
HI! Sorry if duplicate! The search seems to have its own way of thinking! I will be pleased to have a shortcut or button or both to easy switch components from top to bottom and vice-versa during draging! Is it possible? Thanks!
Comments
andyfierman 6 months ago
Hotkeys. B, T, 1, 2, 3, 4 etc. [https://docs.easyeda.com/en/Introduction/Shortcut-Keys/index.html](https://docs.easyeda.com/en/Introduction/Shortcut-Keys/index.html)
Reply
romeo 6 months ago
@andyfierman Thanks, but these are valid only for routing. For compoent placement they doesn't work. It highlights the layer but component remains on the same layer!
Reply
andyfierman 6 months ago

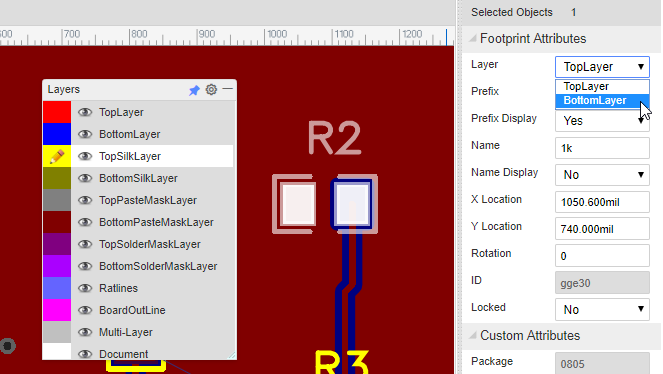

@romeo, Sorry: I misread your question. Select the footprint > Right hand panel > Footrpint Attributres > Layer: ![image.png](//image.easyeda.com/pullimage/gPB84rrvF7x5r81JTH5cZzlYF664ps9AkG95Xgxw.png)
Reply
romeo 6 months ago
Ok! But it will be faster from a layouter point of view, if you have a qucik command or a hotkey to do it.
Reply
andyfierman 6 months ago

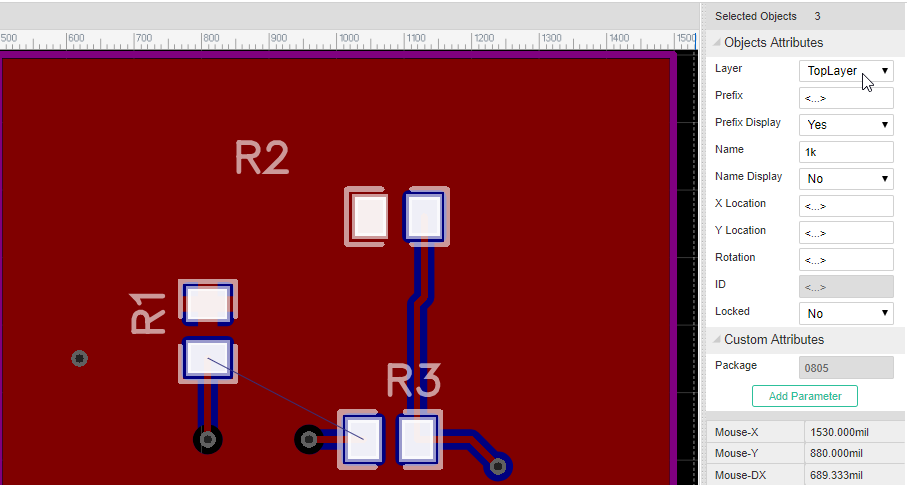

A way to speed up flipping devices from top to bottom is to select all the ones you want to move at the same time (CTRL+left-click, left-click....left-click) then swap layer for all of them at once: ![image.png](//image.easyeda.com/pullimage/h6mcM8DTnd5ASkaZujwMszFOFE9LsXFaOYwpaVP8.png)
Reply
romeo 6 months ago
Ok! Still think my way would be faster! But until that ...
Reply
andyfierman 6 months ago
"Still think my way would be faster! " Not disputing that, just offerng a workaround. :)
Reply
romeo 6 months ago
Thank you, @andyfierman !
Reply
