RS422-MOD (Footprint/Package: RS422-MOD-FP)
. Stackable Generic RS-422/485 PCB Module
. . .
connector rs-422 (Footprint/Package: NONE)
. Footprint for stacked RS-422/485 Modules

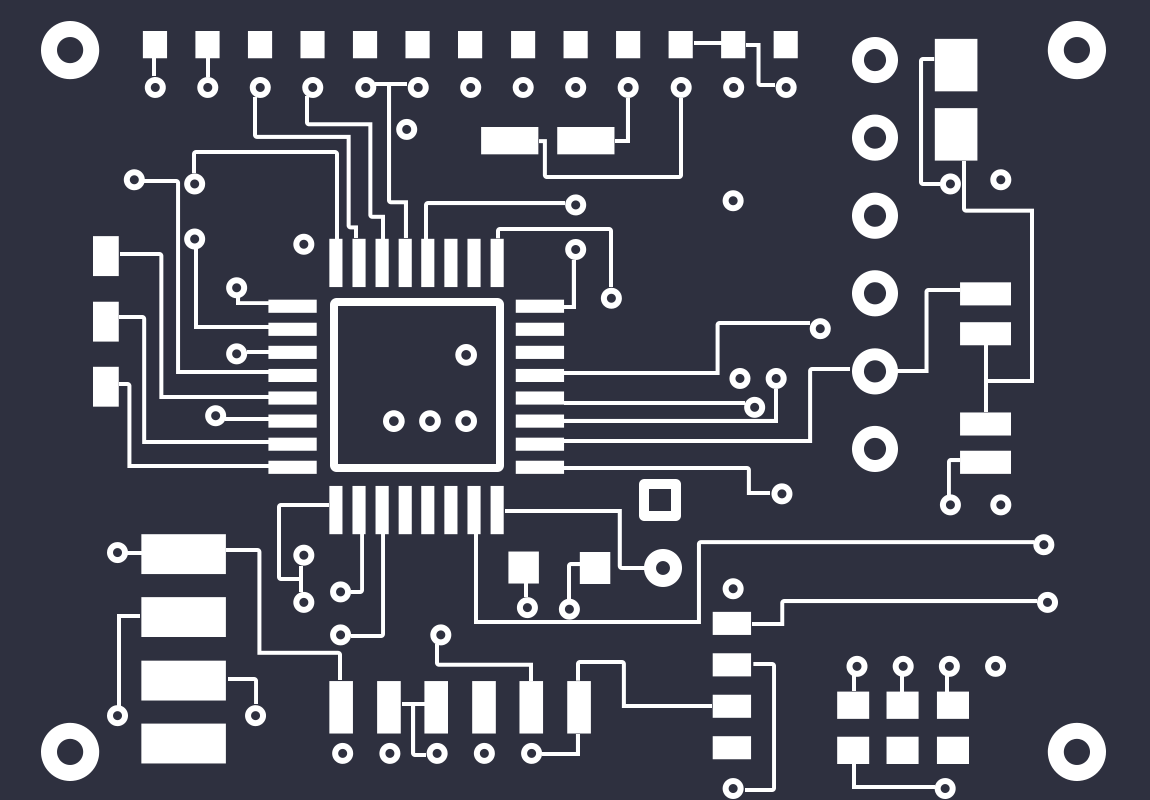

QUAD-RS422-MOD (Footprint/Package: RS422-MOD-FP)
. Quad module board footprint for single to differential conversions in RS-422/485
QUAD-RS422-MOD (Footprint/Package: QUAD-RS422-MOD-FP)
. Quad RS-422/485 SingleDifferential Converter Module Only connect DIR if controlling all lines together.
ttl2rs422 (Footprint/Package: TTL2RS422)
NM422A (Footprint/Package: -NPDIP16C)
. EIA RS-232-C to EIA RS-422-A Transceiver
NM422AD (Footprint/Package: -NPDIP20B)
. Dual EIA RS-232-C to EIA RS-422-A Tranceiver
. Footprint for quad RS-422/485 module slave board. Right side of footprint should be at board edge to allow for overhang of ethernet jack. Middle pins are technically same net as left row but should be floating for physical stability of board. DIR pin should only be used if all lines are controlled...
