FINAL III PLUS THT VERSION

11 months ago 788
  • Description
  • Documents
  • BOM
  • Attachments
  • Members
  • Comments

Description

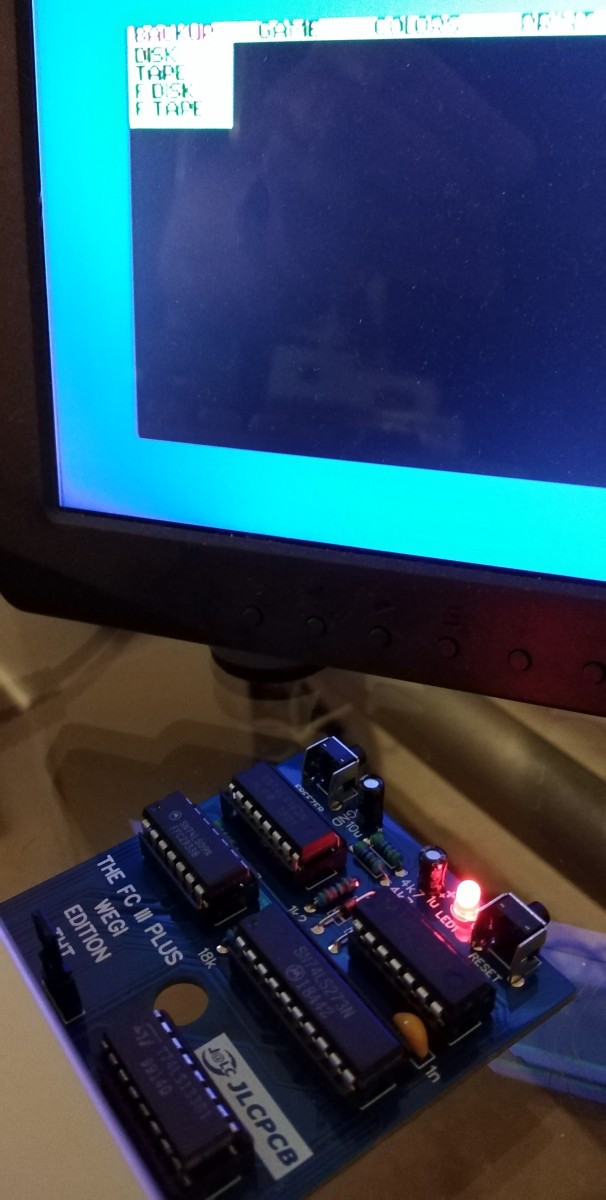

Stefan Wagner assembled and running this cartridge

Thanks Stefan for feedback.

https://easyeda.com/wagiminator

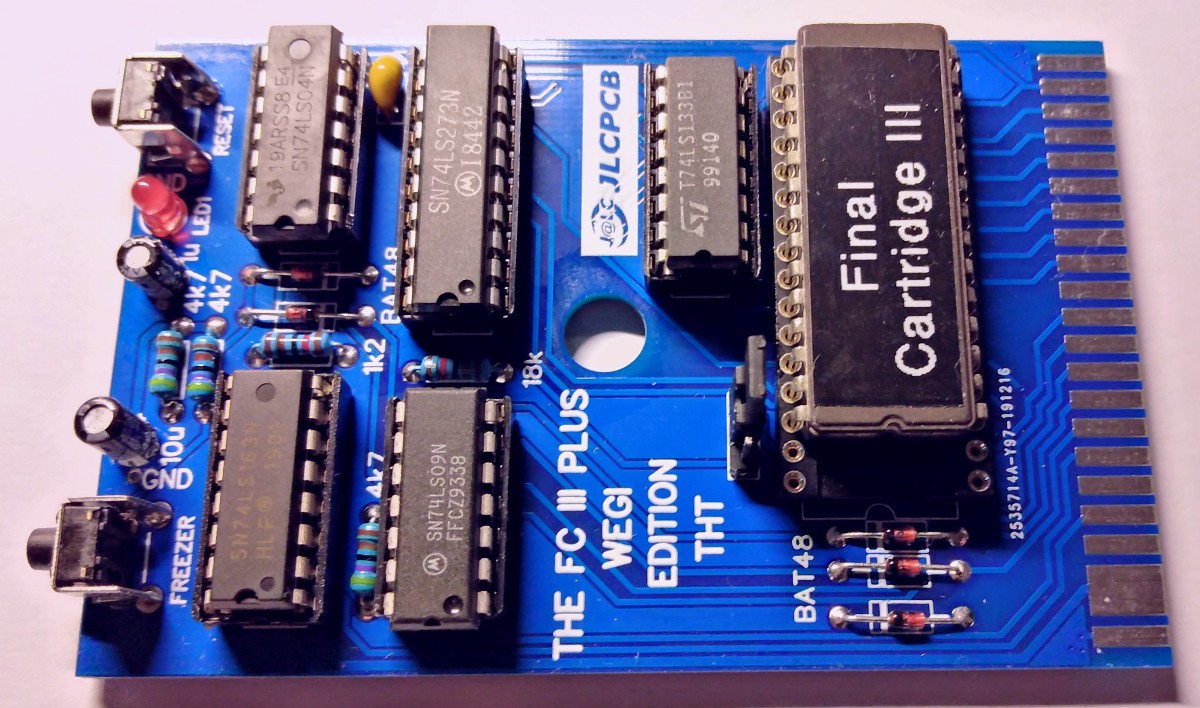

fc3 mounted.jpeg

fc3 inside.jpeg


BASED ON THE e5frog SCHEME MYGUESS


FOUND THIS VERSION AND MADE ANOTHER

TFT top.png

tft tfc3 bottom.png

top bmp.png

bot bmp.png

FINISHED



cart

BOM


Documents

FINAL III PLUS SCHEME

TFC 3 PCB

BOM

ID Name Designator Footprint Quantity
1 FREEZER S1 TACTILE-PTH-SIDEEZ 1
2 RESET S2 TACTILE-PTH-SIDEEZ 1
3 1k2 R1 AXIAL-0.3 1
4 18k R2 AXIAL-0.3 1
5 4k7 R3,R4,R5 AXIAL-0.3 3
6 10u C2 CAP-D3.0XF1.5 1
7 1u C3 CAP-D3.0XF1.5 1
8 74LS133 U3 DIP16 1
9 Header-Male-2.54_1x3 H1 HDR-TH_3P-P2.54-V 1
10 BAT48 D1,D2,D3,D4,D5 DO35 5
11 74LS273 U5 DIP20X500 1
12 204-10SURD/S530-A3 LED1 LED-3MM/2.54 1
13 1n C1 RAD-0.1 1
14 74LS163 U6 DIP16 1
15 27C020 1 DIL32 1
16 CART_C64 U1 CART_C64 1
17 74LS09 U4 DIP14 1
18 74LS04 U2 DIP14 1

Attachments

Filename Download
BOM_FINAL III PLUS THT VERSION_20191105212301.xls

Members

Success
The owner does not allow comments in this project now

Comments (4)

Stefan Wagner Reply

Thank you very much, it works perfectly!

wegi1 Reply

@wagiminator Good to know and thanks for feedback. Here was a lot of work for hand route more fat tracks. Btw. C= logo was stolen from you :) If you can put image here that would be great.

Stefan Wagner Reply

@wegi1 I didn't draw the logo myself either, I found it somewhere on the net ;-)

wegi1 Reply

@wagiminator Hey thanks a lot. Immediatelly I'll take your picture as cover. Must say it looks great. Should be work for next 100 years :]
