STD SWR analyser Arduino AD9850 AD8302
Mode: Editors' pick
- 3
Update time：
2021-04-12 08:07:44
Creation time：
2017-01-17 04:17:44
Description
Контент
Design Drawing

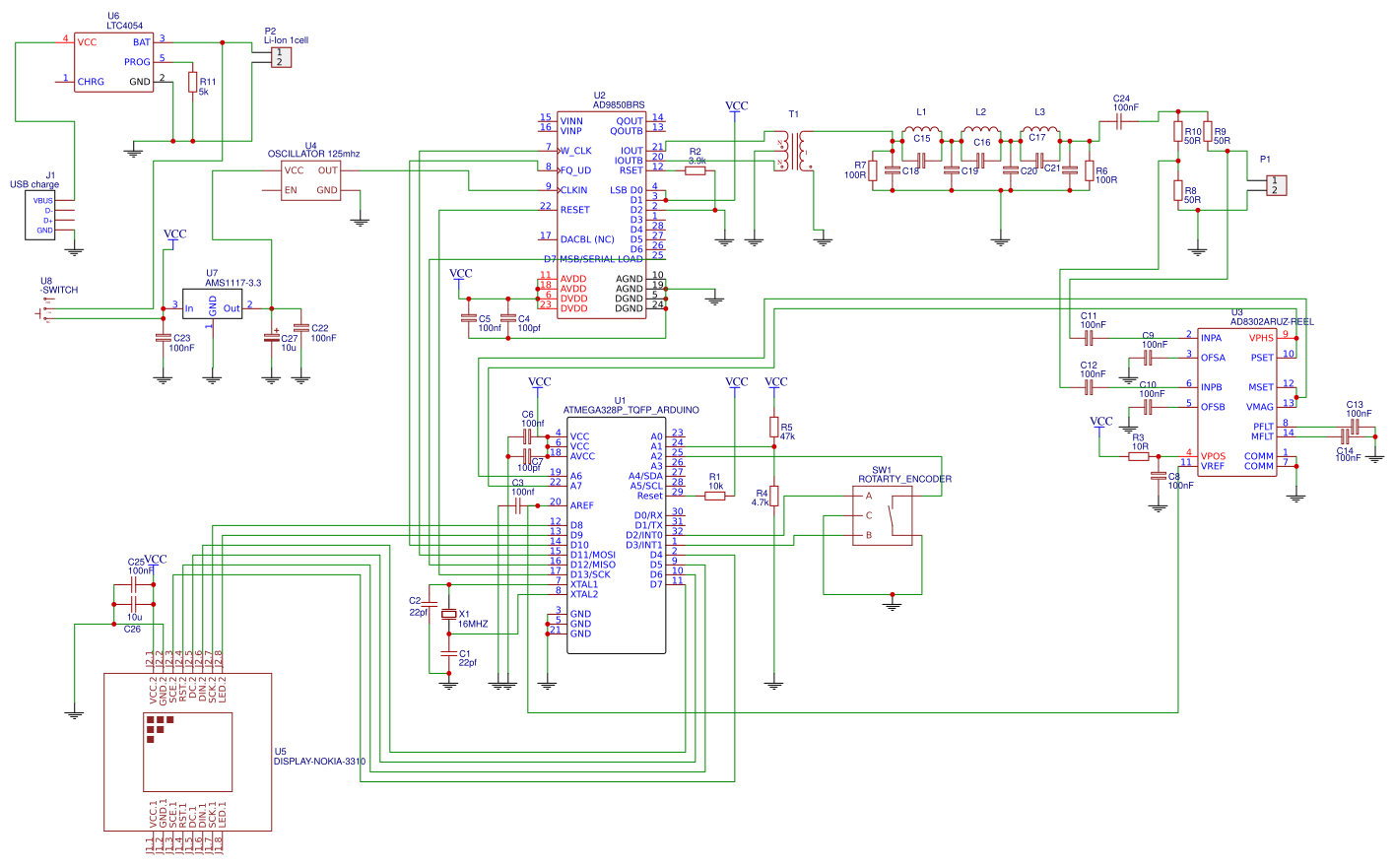

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | ATMEGA328P_TQFP_ARDUINO | U1 | TQFP-32_7X7X08P | 1 |
| 2 | AD9850BRS | U2 | SSOP-28_208MIL | 1 |
| 3 | AD8302ARUZ-REEL | U3 | SSOP14 | 1 |
| 4 | 16MHZ | X1 | OSC-49S-1 | 1 |
| 5 | 22pf | C1,C2 | 0805 | 2 |
| 6 | 10k | R1 | 0805 | 1 |
| 7 | 100nf | C3,C5,C6 | 0805 | 3 |
| 8 | 3.9k | R2 | 0805 | 1 |
| 9 | 100pf | C4,C7 | 0805 | 2 |
| 10 | OSCILLATOR 125mhz | U4 | CRYSTAL-OSC-SMD-5X3 | 1 |
| 11 | XFMR_TAP | T1 | TRANSFORMER | 1 |
| 12 | DISPLAY-NOKIA-3310 | U5 | DISPLAY-NOKIA-3310 | 1 |
| 13 | LTC4054 | U6 | SOT23-5 | 1 |
| 14 | AMS1117-3.3 | U7 | SOT-223 | 1 |
| 15 | 10R | R3 | 0805 | 1 |
| 16 | 100nF | C8,C9,C10,C11,C12,C13,C14,C22,C23,C24,C25 | 0805 | 11 |
| 17 | 4.7k | R4 | 0805 | 1 |
| 18 | 47k | R5 | 0805 | 1 |
| 19 | 1m | L1,L2,L3 | 0805 | 3 |
| 20 | 1u | C15,C16,C17,C18,C19,C20,C21 | 0805 | 7 |
| 21 | 100R | R6,R7 | 0805 | 2 |
| 22 | ROTARTY_ENCODER | SW1 | ROTARY_ENC_PLAIN | 1 |
| 23 | 50R | R8,R9,R10, | 0805 | 4 |
| 24 | Header-Female-2.54_1x2 | P1 | HDR-1X2/2.54 | 1 |
| 25 | 5k | R11 | 0805 | 1 |
| 26 | USB charge | J1 | USB-B-H | 1 |
| 27 | Li-Ion 1cell | P2 | HDR-1X2/2.54 | 1 |
| 28 | -SWITCH | U8 | CON3 | 1 |
| 29 | 10u | C26 | 0805 | 1 |
| 30 | 10u | C27 | CAP-D3.0XF1.5 | 1 |
| 31 | AC generator | U2 | DIP | 1 |
| 32 | Antenna_Connection | U1 | NONE | 1 |
