rtl-sdr sa612 upconverter

2 years ago 3267
  • Description
  • Documents
  • BOM
  • Attachments
  • Members
  • Comments

Description

Documents

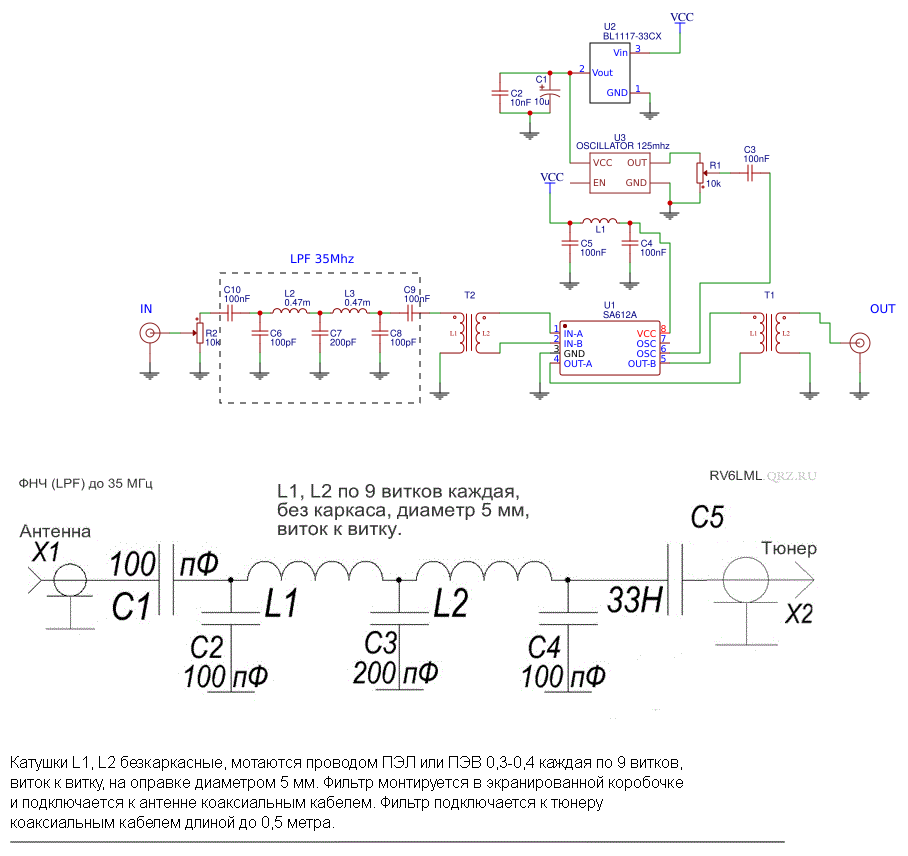

Schematic

Schematic2

PCB

PCB2

PCB_so8612

BOM

ID Name Designator Footprint Quantity Manufacturer Part Manufacturer Supplier Supplier Part Price LCSC Assembly Mounted LCSC SeeedStudio
1 SA612A U1 DIP8 1
2 BL1117-33CX U2 SOT-223 1 BL1117-33CX BL LCSC C5400
3 OSCILLATOR 125mhz U3 CRYSTAL-OSC-SMD-5X3 1
4 Mutual_Inductors T1 AXIAL-0.4 1
5 Mutual_Inductors T2 AXIAL-0.6 1
6 10u C1 CAP-D3.0XF1.5 1
7 10nF C2 1206-CAP 1
8 10k R1,R2 RES-ADJ_3386P 2
9 100nF C3,C4,C5,C9,C10 1206-CAP 5
10 1m L1 AXIAL-0.4 1
11 COAXIAL_U.FL CONN1,CONN2 U.FL 2
12 0.47m L2,L3 AXIAL-0.4 2
13 100pF C6,C8 1206-CAP 2
14 200pF C7 1206-CAP 1
15 1m L2,L3,L4,L5,L6 INDUCTOR-1206 5
16 56pF C6,C7,C8 0805 3
17 2/30pF C ADJRP3-9.70XW5.0X9.80MM 1 T93YA103KT20 SeeedStudio 301040003
