ARDUINO NANO RS485 Sensors LCD/OLED I2C

1 year ago 1042
  • Description
  • Documents
  • BOM
  • Attachments
  • Members
  • Comments

Description

Documents

Sensors + RS485

PCB_V2

PCB_V3

BOM

ID Name Designator Footprint Quantity Manufacturer Part Manufacturer Supplier Supplier Part Price LCSC Assembly Mounted Voltage Description
1 ARDUINO_NANO U1 ARDUINO_NANO 1 Yes
2 Header-Male-2.54_2x16 NP1,NP2 HDR-16X2/2.54 2 Header-Male-2.54_2x16 ReliaPro LCSC Yes C124382
3 MAX485 U2 DIP-8 1 MAX485EPA+ MAXIM LCSC Yes C45829
4 1k R3,R4,R5,R6 AXIAL-0.3 4 Yes
5 RS485 NP3 HDR-1X2/2.54 1 2.54-1*2PFemale BOOMELE LCSC Yes C49661
6 LM7805 U4 TO-220 1 Yes
7 1u C1 CAP-D3.0XF1.5 1 Yes
8 DHT22 U7,U9 DHT22_AM2303_VERT 2 Aosong (Guangzhou) Electronics Co., Ltd. AdaFruit Yes PRODUCT ID: 385 3.3V - 5.5V Digital-output relative humidity & temperature sensor/module
9 BMP 280 4-PIN U8 BMP 280 4-PIN 1 BMP 280 4-PIN Yes
10 MH-19Z P5 HDR-4X1/2.54 1 Header-Female-2.54_1x4 ReliaPro LCSC Yes C124413
11 TSP-05 TSP-1 TSP-05 БЛОК ПИТАНИЯ (AC-DC ПРЕОБРАЗОВАТЕЛЬ) 1 Witalii Yes undefined
12 Jumpers P7 HDR-IDC-2.54-2X3P 1 2X3 2.54mm IDC Box BOOMELE LCSC Yes C11214
13 220V P9 WJ2EDGVC-5.08-2P 1 WJ2EDGVC-5.08-2P ReliaPro LCSC Yes C8445
14 BMP180 U5 BMP-180 1 Yes
15 MQ-X U10,U11 MQ-X 2 MQ-X Yes
16 LCD/OLED P1 HDR-4X1/2.54 1 Header-Female-2.54_1x4 ReliaPro LCSC Yes C124413
17 9V DC1 DC-5020 1 DC005-2.0MM SOFNG LCSC Yes C111567
18 03962A U3 ZARYADKA_03962A 1 Yes
19 Battery 3,7V H1 HDR-2X1/2.54 1 826629-2 TE Connectivity LCSC Yes C86471

Attachments

None
Success
The owner does not allow comments in this project now

Comments (1)

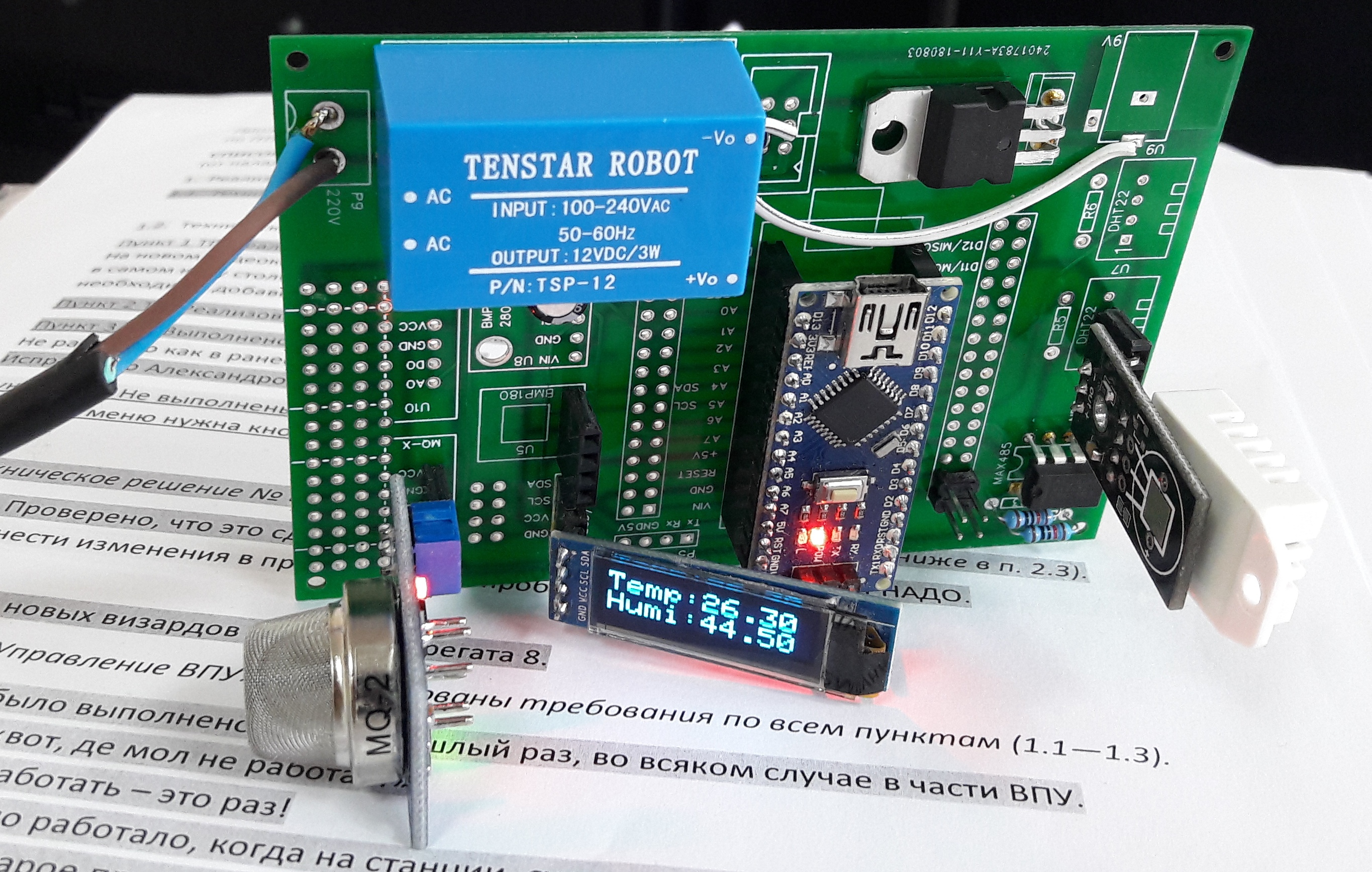

Готовый продукт.20180828_141314.jpg
