Black Box V8 C64 cartridge

3 years ago 2724
  • Description
  • Documents
  • BOM
  • Attachments
  • Members
  • Comments

Description

Old cartridge for Commodore 64 it talking :)

https://www.youtube.com/watch?v=19-FXD1LR7c

Thanks to JLCPCB.jpg



BB8 menu1.jpg

bb8 he.jpg

sam he.jpg



It was a very rare methods of presents ROM - latching by address, thats why it no emulate in VICE emu. For this I changed CRT image - it present as Final III cartridge. Also I added in ZIP file bin for 1541 Ultimate.


AS BLACK BOX V4

In this HW you can do as well BLACK BOX V4 bin files for 27C256 and 27C512 in attachment.



AS HYBRID BBV4 PLUS BB V8 FOR 27C512

Modded BIN in attachments



bb8 he.jpg

sam he.jpg


PCB THANKS TO JLCPCB !!!



PCB 45 DEGREE TRACK VERSION

bb8 top.png

bb8 bottom.png

eot

Documents

BBV8_RESTORE

NEW_PCB_MODERN

45 degree version

BOM

None

Attachments

Filename Download
BLACKBOXV8.ZIP
BLACKBOXV4.ZIP
27C512 BBV4-V8 HYBRID.ZIP

Members

Success
The owner does not allow comments in this project now

Comments (9)

Roman Kubat Reply

Zamówiłem płytkę i wgrałem wsad BBV8 ORYGINAL FOR 27c512.BIN do pamięci W27C512 i po złożeniu, nie działa, pokazuje tyko czarny obraz.

Roman Kubat Reply

Na schemacie zamiast 74HCT02 ma być CD4001.

Roman Kubat Reply

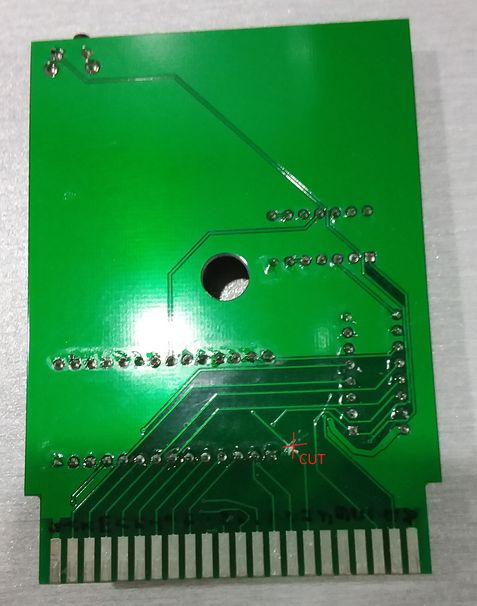

Płytka ma błąd, należy zastosować CD4001 zamiast 74HCT02 i przeciąć ścieżkę jak na zdjęciu.

wegi1 Reply

Poprawione na 74 (LS/HCT) 02

roman.gorczyca Reply

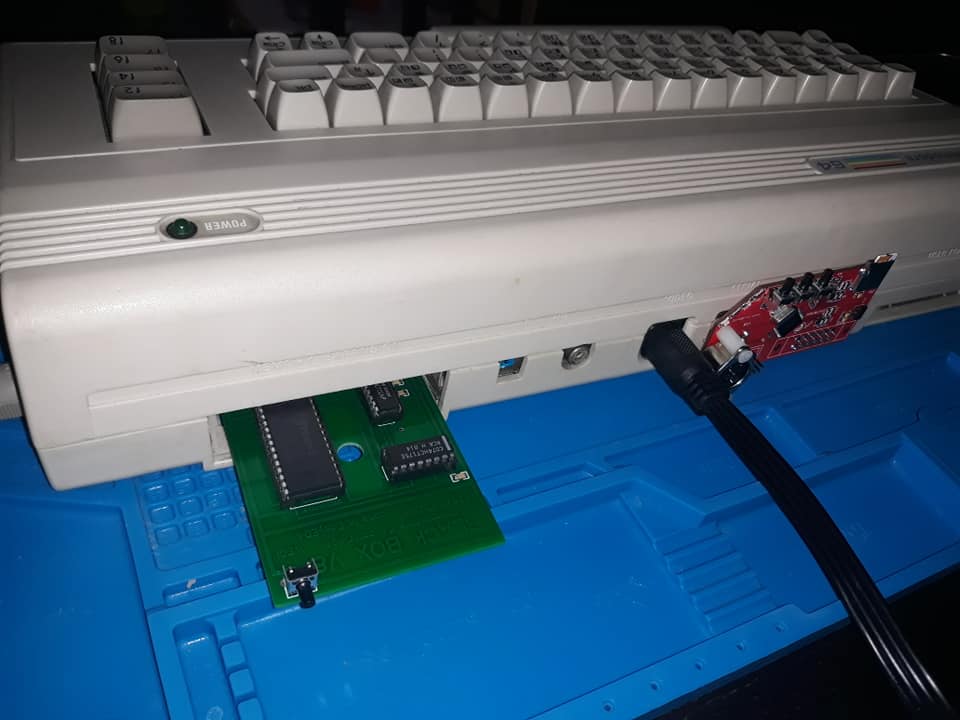

It works perfectly

roman.gorczyca Reply

Wrzuciłem do eproma BB8Core. Działa wyśmienicie. Wywaliłem obsługę M2I - zamiast tego wrzuciłem D71 i D81.bb8COre.jpgbb8core2.jpg

wegi1 Reply

@roman.gorczyca dzieki za info pozdrawiam

wegi1 Reply

@roman.gorczyca przy okazji jak masz wbita gdzies hybryde bb8+bb4 na 27c512 to reset+cbm daje moje intro

roman.gorczyca Reply

@wegi1 tak myślałem:-) ze znam to intro jest minigangcarcie, którego no ta bene też posiadam :-D
