Enhanced version of the ESP8266 Prototype board
- MCP1702-3302E voltage regulator, LM1117 possible
- Smaller PCB
- Identification of GPIO
[Link to the site of the maker (english)]
This is a dev board based on the ESP32. It can be connected to the computer via usb for programming and includes base periphery.
No need to add tourblesome wires and add-ons for prototyping.
- Gyro / Accelerometer (MPU-6050)
- 1 Main Output Control
- 1 push button (debounced by hardware)
- 1 rotary/push button (debounced by hardware)
- Micro SD Slot
- IR-Sender / Receiver
A 30-pin mini-breadboard with power input via Barrel Jack or microUSB. Top and bottom positive strips can be separate voltages or joined by a jumper. Bottom strip is powered from barrel jack. Top strip is powered from microUSB.
A derivative of the 30-pin breadboard by Johan_a.

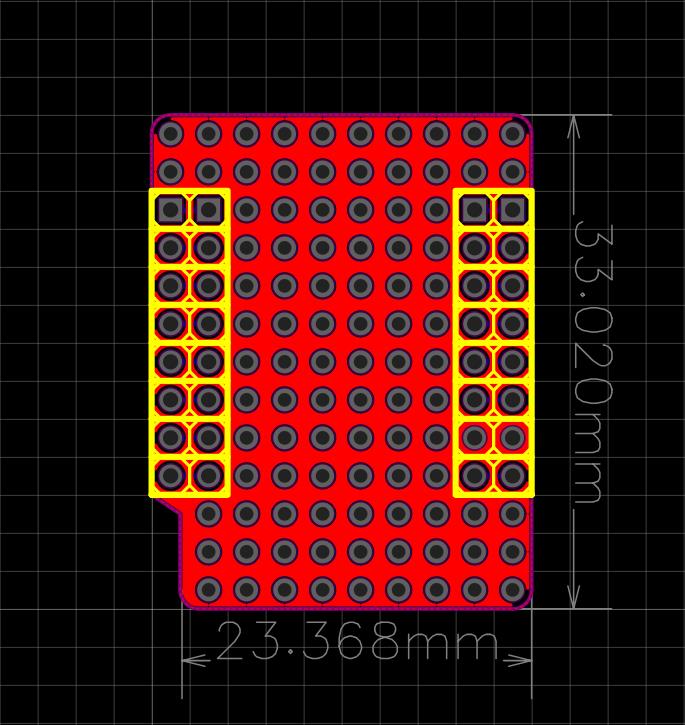

A general purpose prototyping shield for the WeMos D1 Mini, which is a microcontroller board based on the ESP8266 module.
Outline to match D1 Mini.
Headers with breakouts.
General purpose 0.1" grid for custom parts.
