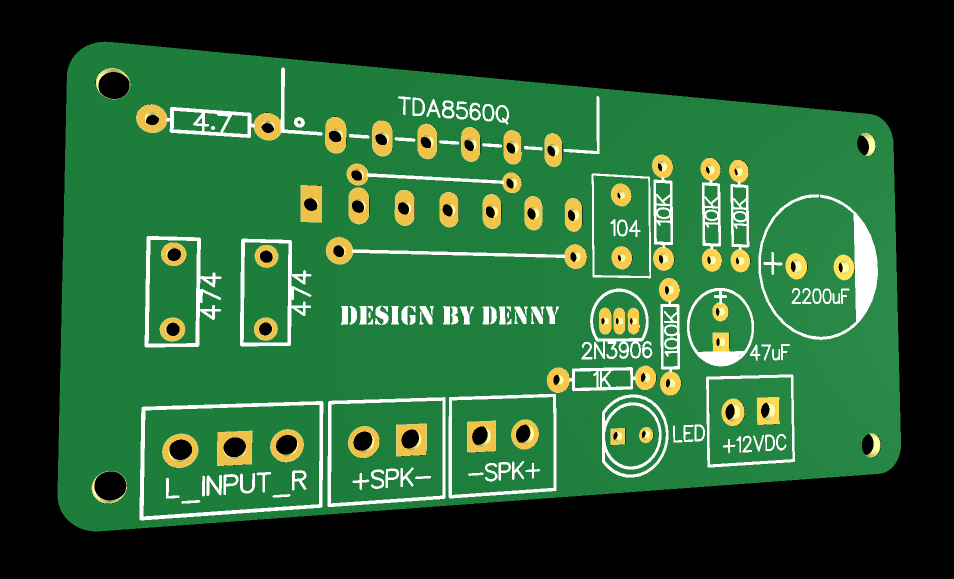

Amplifier stereo 80 watt (2x40) dengan power supply 12 volt. dengan speaker 4 ohm.
- pin 1 dan 13 dari TDA8560Q adaah input sinyal audio. kapasitor 474 bertugas melindungi input dari arus DC yang masuk.
- pin 3 dan 10 adalah supply tegangan. jika tegangan lebih dari 18 volt maka sirkuit tidak ON.
- pin 11...
