Ammeter and Voltmeter Precision
145 4
Tom Earl Henson 2 months ago
I have a voltmeter or ammeter in my circuit. Is there away to get more precision from the instruments. For example, it will give me 0.025A but I would like to show 0.025634A and the same for voltage.  I'm pretty new to this software.
Comments
andyfierman 2 months ago
Can you share a project so I can see how you're metering it?
Reply
andyfierman 2 months ago

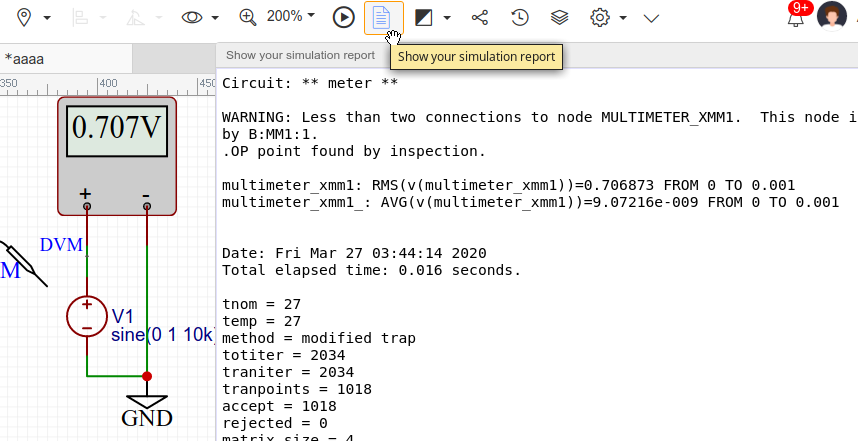

You cannot change the resolution of the multimeter symbol but you can view voltages at up to 6 decimal places resolution: ![image.png](//image.easyeda.com/pullimage/uHSUJ7dxVoXD53JFYaZY1R0q8xocTlsqxFl6Youy.png)
Reply
Tom Earl Henson 2 months ago
Thank you, Ill look into that.
Reply
andyfierman 2 months ago
You can also use you own .measure statements. That section of the spice Tutorial is not updated from ngspice yet but the Help on the Ltwiki.org pages or a locally installed copy of LTspice will show you how to use them.
Reply
