Ancho de trazo
1087 2
cuatropuntos 2 years ago
<font style="vertical-align: inherit;"><font style="vertical-align: inherit;">Hola, quisiera saber cómo cambiar el ancho del trazo de las pistas de un diseño todas de una vez por una única medida. Muchas gracias! </font></font><br> <br>
Comments
deskpro256 2 years ago

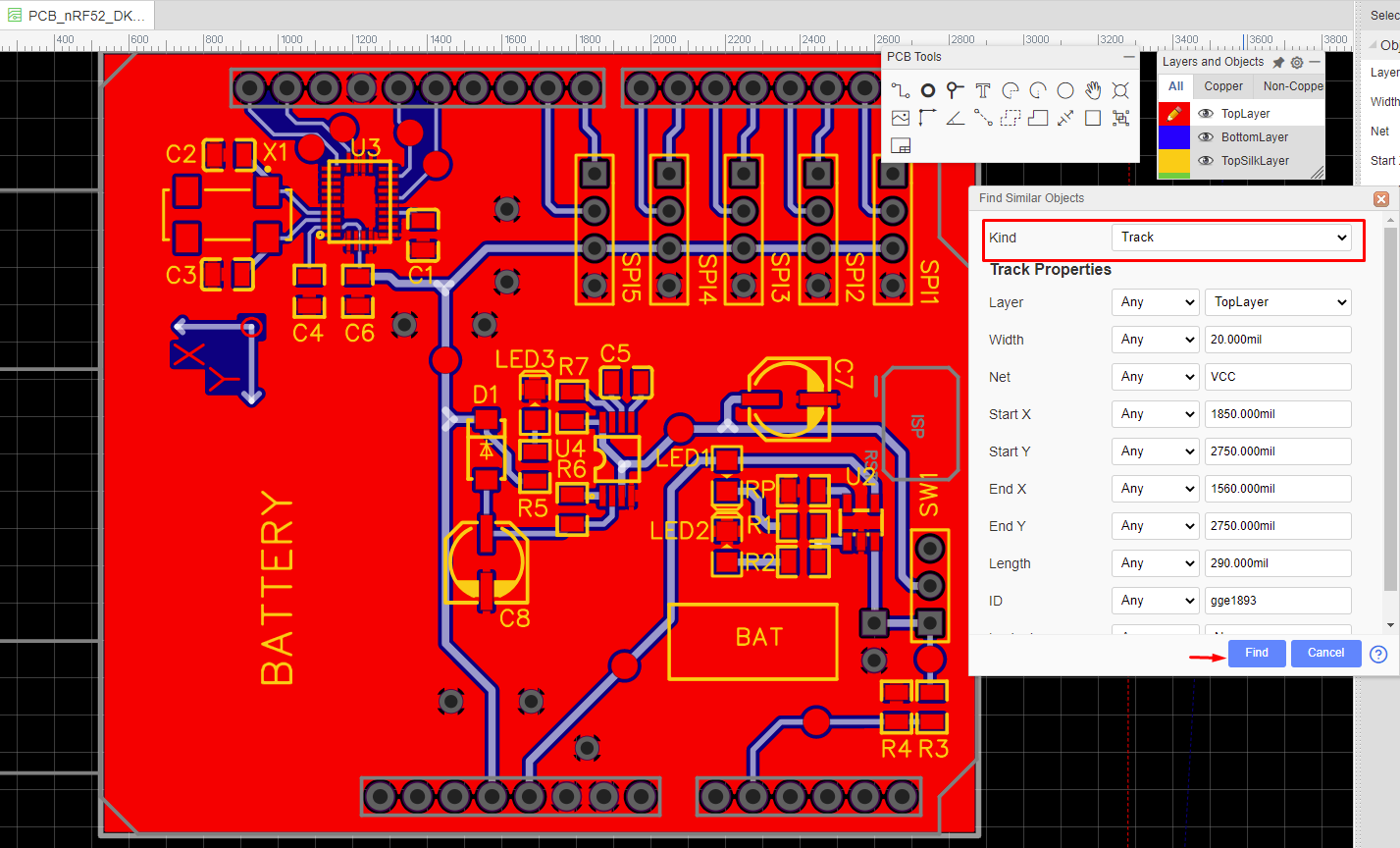

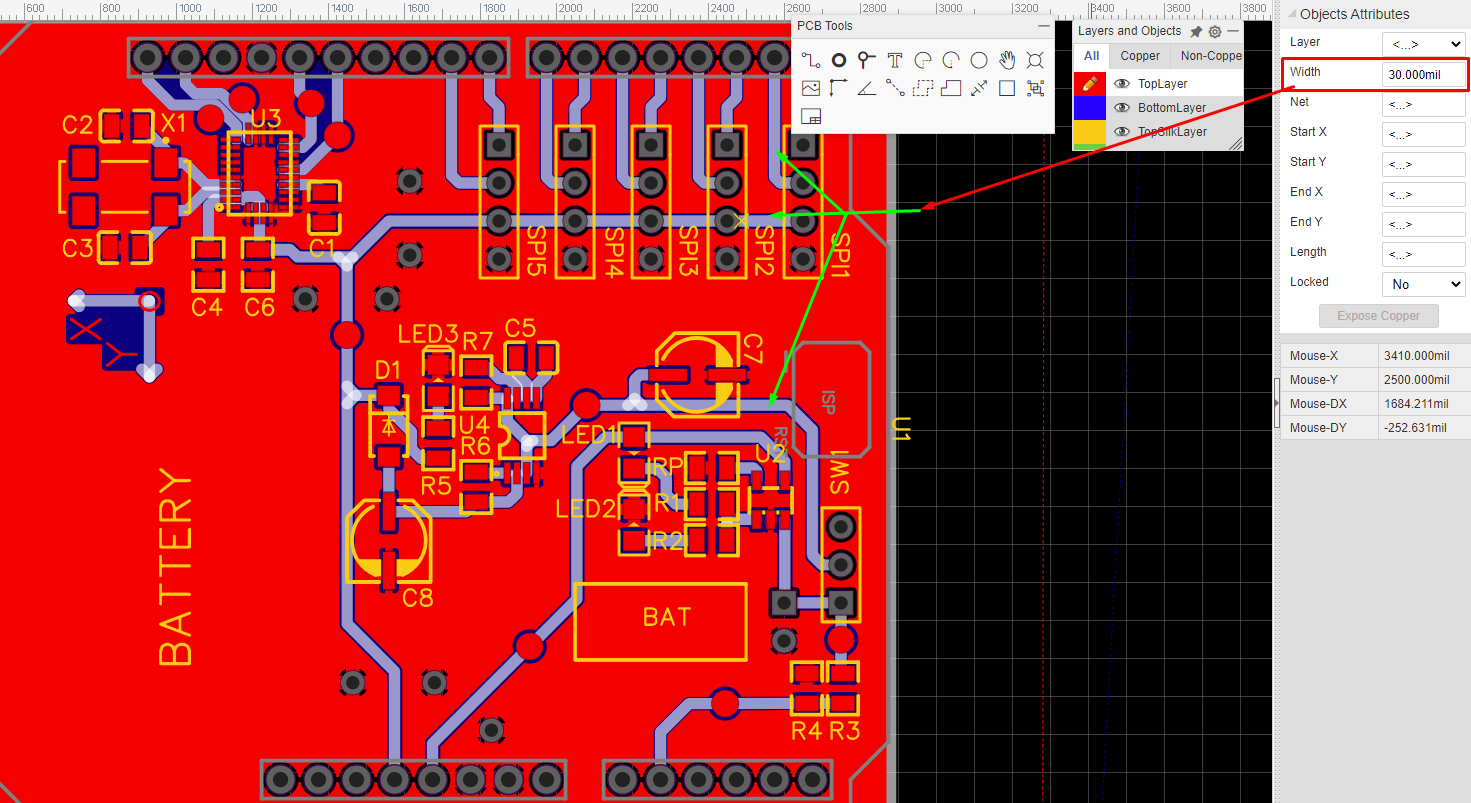

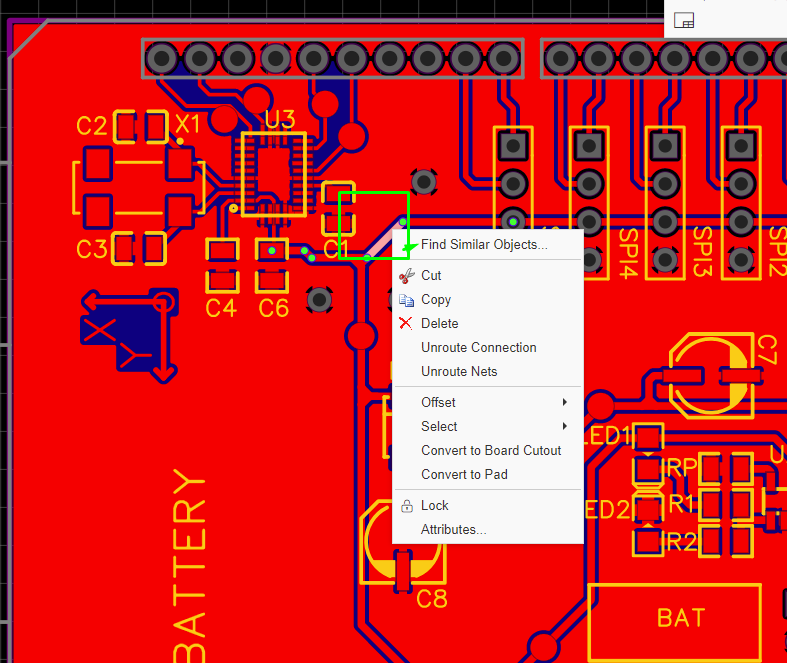

Hi! Start by selecting any track, right-click on it > Find Similar Objects> ![Screenshot_3.png](//image.easyeda.com/pullimage/AJZ6RlP7JMaIMzaT74kN3jpUxPR7z3GLjFirnkyn.png) <br> Check that it has selected "Track" objects, if needed, you can also select by different parameters. Otherwise, just press "Find" <font style="vertical-align: inherit;"><font style="vertical-align: inherit;">You'll see that all traces have been selected:</font></font><br> <br> ![Screenshot_1.png](//image.easyeda.com/pullimage/Z436hAW5zepPfsFsLKsLOfEzb0xMVGanE0TErX2o.png) <font style="vertical-align: inherit;"><font style="vertical-align: inherit;">Then press "Cancel", the tracks will still be selected. Then you can change the "Width" parameter in the top right menu to your desired track width. Press enter and it should be done. If you already have the GND copper added, you need to update it. Shift + B is a shortcut for it.</font></font><br> <br> <font style="vertical-align: inherit;"><font style="vertical-align: inherit;">![Screenshot_2.png](//image.easyeda.com/pullimage/LyIi8uZDHd47HnG8XA0qa4pMhDSDGEBJrhqDWQPj.png)</font></font><br> <br> <font style="vertical-align: inherit;"><font style="vertical-align: inherit;">Hope that helps!</font></font><br> <br> Español (Google Translated)<font style="vertical-align: inherit;"><font style="vertical-align: inherit;">:</font></font>¡Hola! Comience seleccionando cualquier pista, haga clic con el botón derecho en ella> Buscar objetos similares> Compruebe que ha seleccionado los objetos "Seguimiento", si es necesario, también puede seleccionar por diferentes parámetros. De lo contrario, simplemente presione "Buscar" Verá que se han seleccionado todos los rastros: Luego presione "Cancelar", las pistas aún estarán seleccionadas. Luego, puede cambiar el parámetro "Ancho" en el menú superior derecho al ancho de pista deseado. Presione enter y debería estar listo. Si ya tiene agregado el cobre GND, debe actualizarlo. Shift + B es un atajo para ello. ¡Espero que ayude!
Reply
cuatropuntos 2 years ago
Excelente! Solucionado! Muchas gracias por su ayuda!
Reply
