Autorouter problem

651 4

sundbyk 6 years ago

Hi, I lately are experiencing the the autorouter draws over copper from another net. Also when I select not the route ground it never finish routing. ![Trace problem](//image.easyeda.com/pullimage/1QZRoSrOB1cy5bojiipGGkpE5BVs78to8xAhxunS.png)

Chrome 72.0.3626.109 Windows 10 EasyEDA 5.9.42

Comments

sinny777 6 years ago

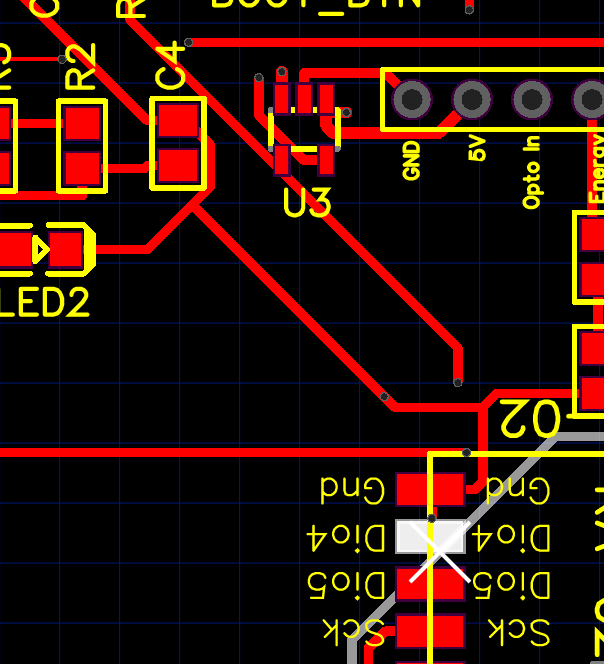

I'm also facing the same issue since few days. I think this is due to some changes in the new version. I'm now always getting DRC errors after the Autoroute is completed successfully. I can clearly see that many routes are overlapping the pads. ![image.png](//image.easyeda.com/pullimage/3UgdLT1PeFExXtvXWDuxf7VvjkIPcR3ySowX1sZO.png)

Firefox 60.0 OS X 10.14 EasyEDA 5.9.42

sundbyk 6 years ago

Hi, I tested the offline EDA program. That works OK with the online autorouter. No overlap on pads and it is better to draw with. :-) Kjell S.

Chrome 72.0.3626.109 Windows 7 EasyEDA 5.9.42

sundbyk 6 years ago

Hi, I was wrong. The problem still exits i the offline version. Kjell S.

Electron 3.0.11 Windows 7 EasyEDA 5.9.42

UserSupport 6 years ago

Hi Please modify this manually. if the single layer pad have no net, the auto router will not avoid it at this version. we will fix it next release.

Firefox 65.0 Windows 10 EasyEDA 5.9.42
