Copper Pour Track Clearance EasyEDA Pro
404 4
AustinDale 10 months ago
I am working in Pro and I would like to increase the Clearance between my copper pour and my tracks. Every tutorial shows a simple click of a "clearance" in the properties and change the value. I see nowhere to change any such clearance. I have clicked everything and my user interface looks different from every tutorial. Please see below for a screenshot of what I get when selecting my copper pour. Again I just want to put more spacing between my tracks and the copper area. Please don't direct me to another tutorial where the person explaining it has a completely different user interface than mine. ![image.png](//image.easyeda.com/pullimage/8iw6qz9y6vHXnvcql61nwXcujyoqZ8Envp4r26ht.png)
Comments
andyfierman 10 months ago
Are you able to change the clearance of your tracks to the copper pour (as distinct from changing the clearance of your copper pour to any other copper)?
Reply
AustinDale 10 months ago
@andyfierman I don't see the option to change clearance anywhere.
Reply
haidy_easyeda 10 months ago

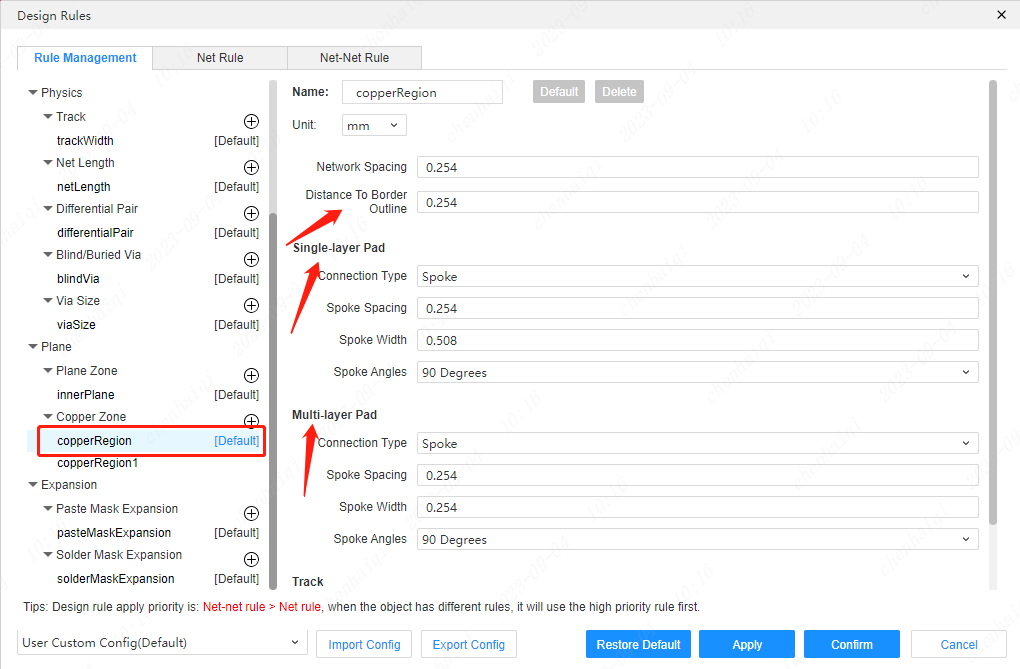

If you need to change the spacing rules between the copper and other elements, you can do so in the top menu~![image.png](//image.easyeda.com/pullimage/X4iod0r9NmXBSk8G4rsdJ8pKO61lQDNG1YQZlfES.png)![image.png](//image.easyeda.com/pullimage/ZfHa5qdw436FWul4d56k9nrlljEdjicjXDJRuh0F.png)
Reply
AustinDale 10 months ago
@haidy_easyeda HAHA Perfect! Thank you So very much!
Reply
