How to change shape of all pads from round to oval at once?
43 1
f86597 1 week ago
I want to change shape of pads from round to oval for custom pcb which make through etching. I tried to change shape by selecting individually all pads but this is time consuming process. Is there any way to select all pads at once and change shape. (not using CTRL key).  TIA
Comments
andyfierman 1 week ago

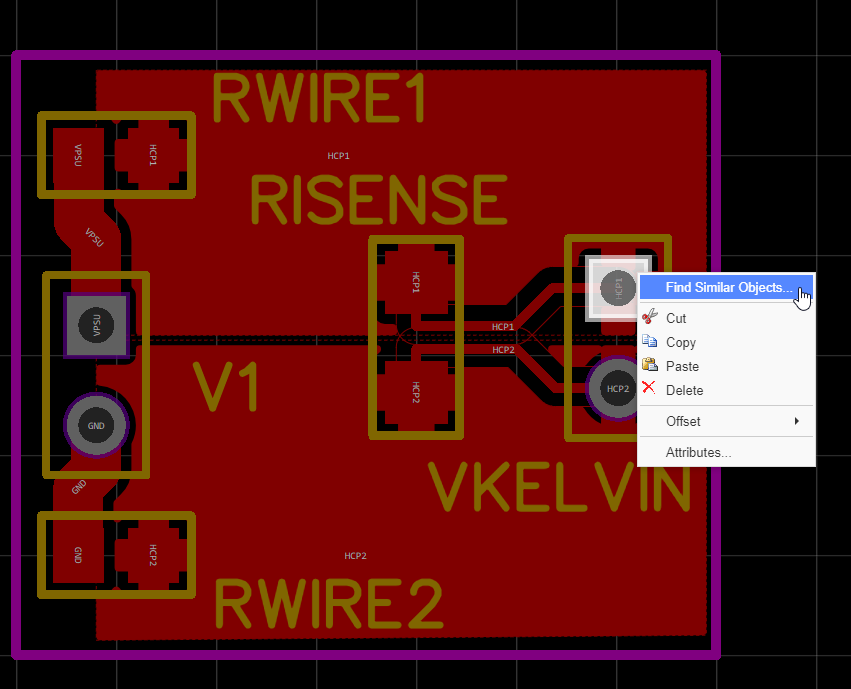

Select a pad; Right-click > Find Similar Objects: ![image.png](//image.easyeda.com/pullimage/zaB6UafsgXnYTARwQYXdbJ6hPomRyLDLejqwy7n4.png) Make your selection the click **Find**: ![image.png](//image.easyeda.com/pullimage/QohJcvmDjEgudtABIe7itXdMbNAN3uz1ksWwJTct.png) Make your layer selection: ![image.png](//image.easyeda.com/pullimage/yCLT5IxxwTXD3ftQlwtVCtCB7ha9I9j41fb9NOyA.png) Make your shape selection: ![image.png](//image.easyeda.com/pullimage/CxFsAoHDNJIN47KQznocqUCU2VDj7LLAdqBLhYMw.png) Done: ![image.png](//image.easyeda.com/pullimage/Y4x1xfgUablEojAlnPJu6iUQ4rBpGoT38o1q6G3B.png) Make you height/width selection (remember that pads may have been rotated since initial placement): ![image.png](//image.easyeda.com/pullimage/TlkbmsXDpubqV9p0RaNPA7IxNJhGnF9dcBPuWVBJ.png) Done: ![image.png](//image.easyeda.com/pullimage/8uvcwTSmfvcRoOlg0arHeAKL76rKeriiZAObo5tr.png) * **Use with care!**
