How to create circular PCBs or PCBs with curved edges
130 2
Kosview Productions 2 months ago
Hello. Please I am designing a PCB and i would like it to have curved edges. How can I build that?
Comments
example 2 months ago

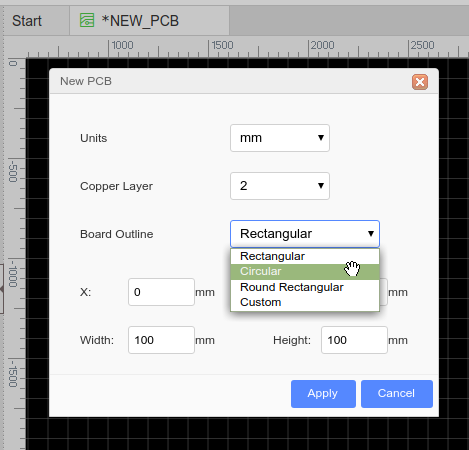

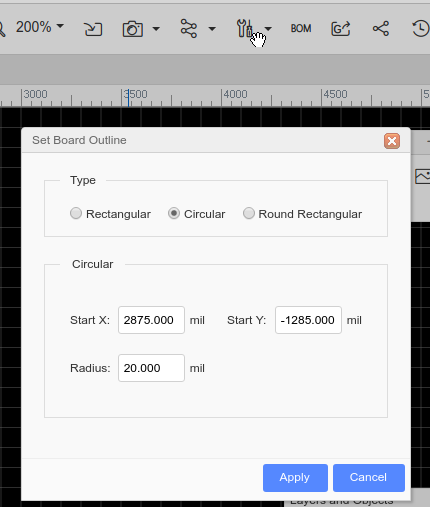

Please see [https://docs.easyeda.com/en/PCB/Board-Outline/index.html](https://docs.easyeda.com/en/PCB/Board-Outline/index.html) and: ![image.png](//image.easyeda.com/pullimage/v6NJBpY8izzCQ5DKCCoVvj30wzeXqmw0WJar4vNk.png) and: ![image.png](//image.easyeda.com/pullimage/AjRidwIbk2N7lbGB3jxvtUX5rINclRZgiDEbHg9O.png)
Reply
Kosview Productions 1 month ago
@example Thank you SO MUCH!
Reply
