How to run a simulation
9925 3
andyfierman 2 years ago

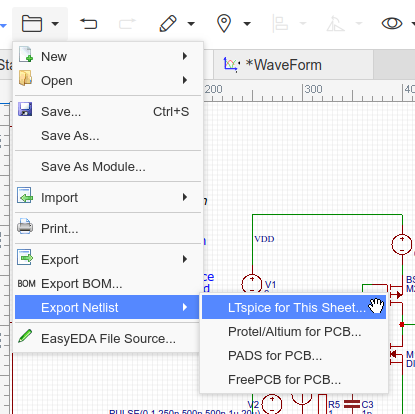

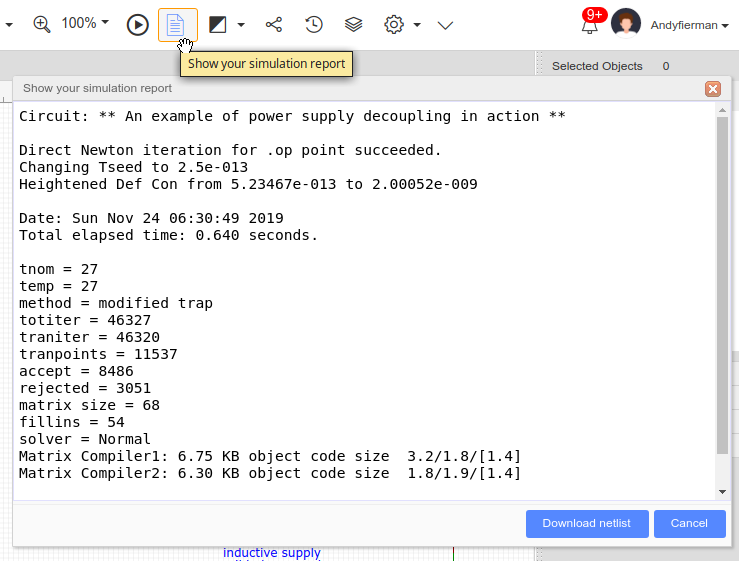

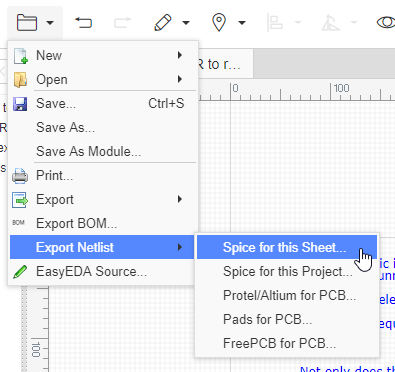

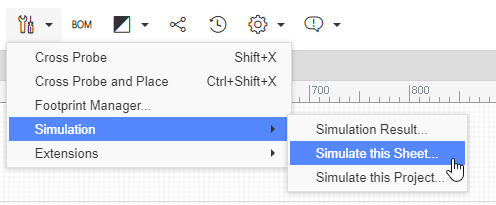

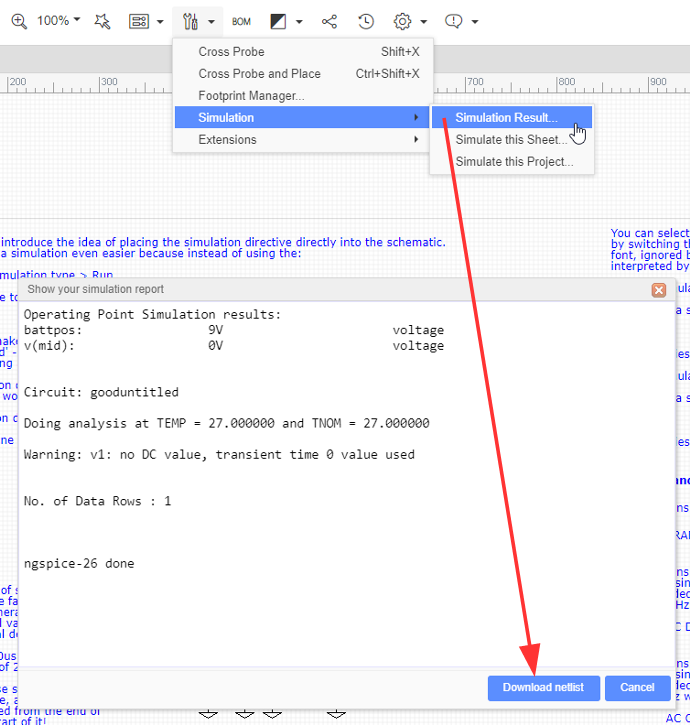

**Updated for V6.x with LTspice simulation engine** ### How to run a simulation, view the simulation report and download the spice netlist. This tip shows three ways to run simulations, a way to view the simulation report window and two ways to download the spice netlist. A simulation can be set up using **CTRL+J** to open the Run your simulation dialogue box: ![image.png](//image.easyeda.com/pullimage/I2PWpJk4Z93cDxNiskVFGk3tYr8O2EKaMQcnkEJI.png) and then setting up and running the simulation of your choice. #### Run simulations, view the simulation report and download the spice netlist via the top toolbar. Once the simulation has been set up using CTRL+J and run by clicking on the **Run** button, a spice directive is placed into the simulation schematic. Simulations can then be run either by clicking on the **Run your simulation** button on the top toolbar: ![image.png](//image.easyeda.com/pullimage/8HwX372iwfQwXkxTU5e2tJpX3If2bS3zMUBxE8un.png) or by doing: **CTRL+R** It is also possible to enter the simulation directive directly into a simulation schematic as text and then selecting and setting the text to: **Text Attributes > Text type > spice** and then run a simulation by doing: **CTRL+R** Simulation results and error messages can be viewed by clicking on the Show your simulation report button: ![image.png](//image.easyeda.com/pullimage/HGIHc82Mz8GrHHvVLUtzkVN2ZnWWztHckUMqvxfU.png) The text in this window can be copied (CTRL+A then CTRL+C) and pasted (CTRL+V) into a text file. The spice netlist can be viewed and downloaded by either clicking on the **Download netlist** button or via the `Documents` Menu. \*\*Document \> Export Netlist \> LTspice For This Sheet \*\* ![image.png](//image.easyeda.com/pullimage/rYvz9881MDQLqeDCBGm70cXlBp5iX8f7tes1olaQ.png) ![image.png](//image.easyeda.com/pullimage/6BePwlUhljPlgeDfZUTao3QAWk6CYlFt3y5elpe3.png) and then clicking **Download** in: ![image.png](//image.easyeda.com/pullimage/J64JKmAAU8LxCWkLe0XwK76tJat0wYw4X4tKBHfl.png) #### Advanced probing and simulation control For more information on ways to control simulations, please see: [https://docs\.google\.com/document/u/1/d/1OWZVVFRAe\_2NW3WratpkA\_SGuHa5AcRow5ZRfvcoVTU/pub\#h\.4i7ojhp](https://docs.google.com/document/u/1/d/1OWZVVFRAe_2NW3WratpkA_SGuHa5AcRow5ZRfvcoVTU/pub#h.4i7ojhp) **TO BE UPDATED:** For information about how to find simulatable parts in EasyEDA, please see: [https://easyeda\.com/forum/topic/How\_to\_find\_simulatable\_parts\_and\_run\_a\_simulation\_in\_EasyEDA\-1YgasK2kC](https://easyeda.com/forum/topic/How_to_find_simulatable_parts_and_run_a_simulation_in_EasyEDA-1YgasK2kC)
