Is it possible to design a bridge of pin headers ?
1153 8
R1S8K LLTP 3 years ago

Hi,

I'm working to design a development board for an Arduino nano which has difference displays header pins + header pins for different sensors and modules.

The issue now is that I want to design a complete set of female headers which can work with multiple sensors and modules and since they are differ in their set of pins. So the way to design a header pin which can adapt different modules is to put 3 header pins which work like this:


I want to do this as a complete module so I don't have to do it every time. Is it possible to design it as a schematic module ?

Comments
andyfierman 3 years ago

You can make a Schematic Module and also a PCB Module.

See the Tutorial for more about Modules.

Reply
R1S8K LLTP 3 years ago

@andyfierman Where is the tutorial ?

Because I tried to do it in the schematic module design but didn't work.

The wires don't contact. I can't wire the pins together.

Reply
andyfierman 3 years ago

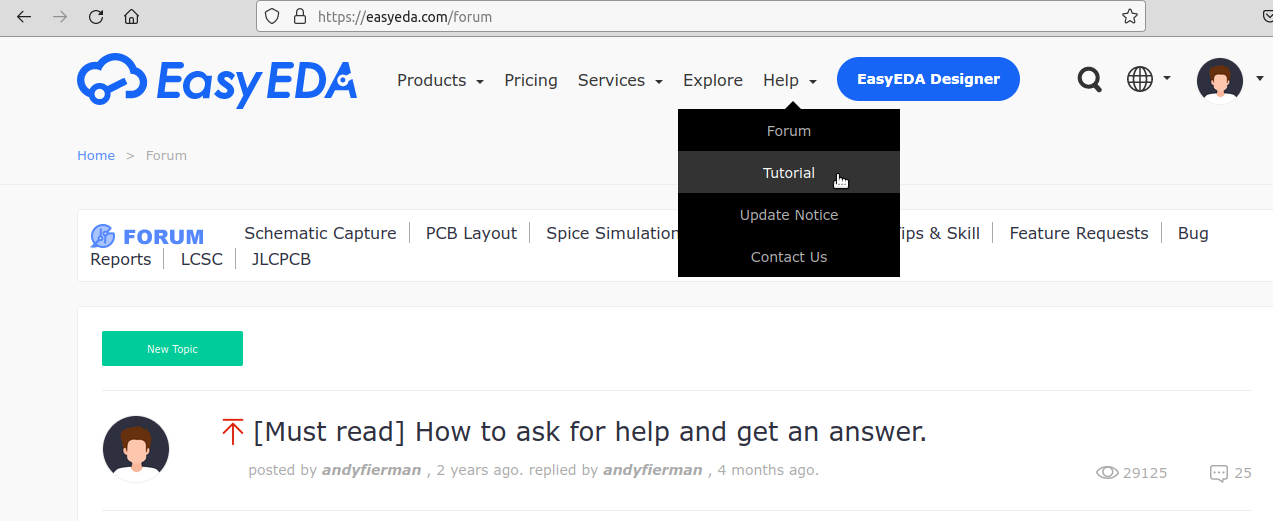

You can find the Tutorial here:


or (1) in (2) in:

https://easyeda.com/forum/topic/How-to-ask-for-help-and-get-an-answer-71b17a40d15442349eaecbfae083e46a



or here:


To get modules to connect you need to follow the rules on the schematic module construction and the naming process when you place the PCB modules.

It's a while since I used them but I think the module naming process will sort out any issue of duplicated net names. Check them carefully in both schematic and then PCB and manually rename any conflicts.

Reply
andyfierman 3 years ago

"...and manually rename any conflicts..."

...in the schematic then do **Update PCB... ** to pass them into the PCB Editor.

Reply
R1S8K LLTP 3 years ago

@andyfierman Got the idea ! Thank you very much.

I also got to know other stuff; like, solder mask layer, layers, copper flood ... etc. Very interesting !

Reply
R1S8K LLTP 3 years ago

Hi,

I tried to add the extra pin headers in the PCB design but they duplicate the connections with the schematic module.


Reply
R1S8K LLTP 3 years ago

I want the header schematic to be connected with only one header port in the pcb footprint.

This is an effort to design a header bridge for connecting different sensors or modules which can have different pin mapping system. Like the difference between MPU6050 and GY-85 pin set.

Reply
R1S8K LLTP 3 years ago

OK, I solved the problem.

I just have to delete the pin numbering in the pcb design for the pins I don't want to be connected with the schematic module.

Reply
