The new EasyEDA all of a sudden started to reference square to the corners and not the middle.
This makes that traces cannot be routed normally any more, and it affects boards already designed.
If one now moves a component on boards that was work in progress before this problem, the traces are not connected any more and cannot move with the component.
With a new layout, the trace only goes to the corner.
The problem is also visible for pad connections to copper layers.
This needs a very urgent fix or you guys will waste thousands of wrongly routed PCB's.

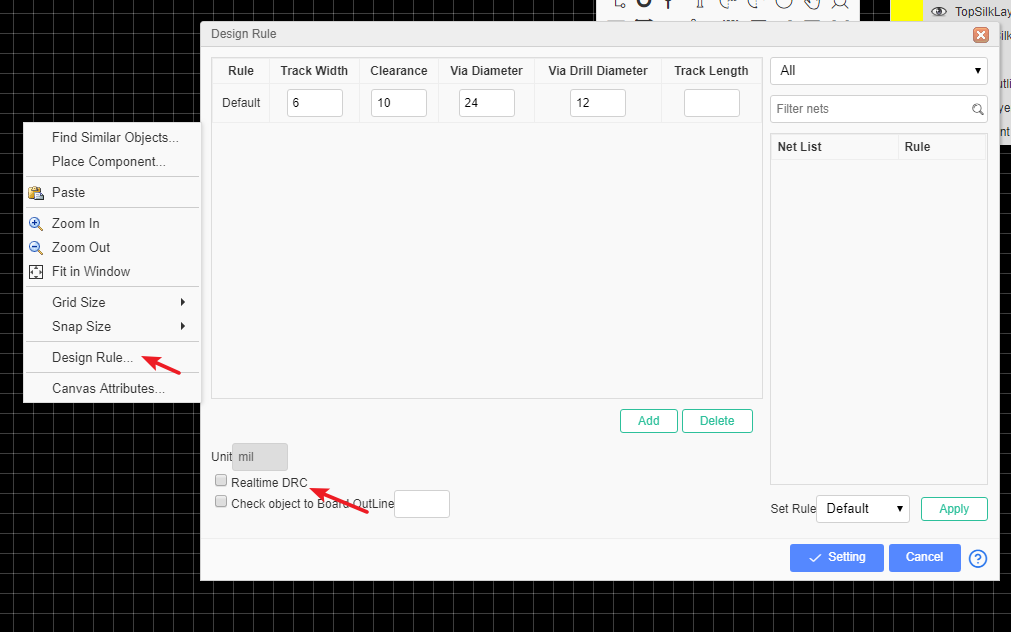

![image.png](//image.easyeda.com/pullimage/qqBYATvnAHZkNoZYaNIo5hydpaPEXCIYoIFvXDwz.png)
Chrome
68.0.3440.84
Linux
