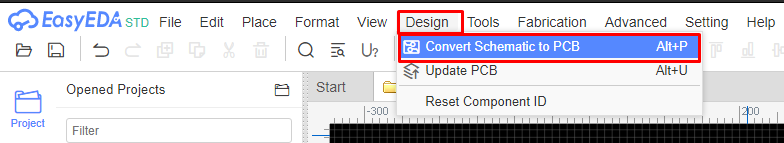

Hi, welcome! In schematic view it should be under Design > Convert schematic to PCB.

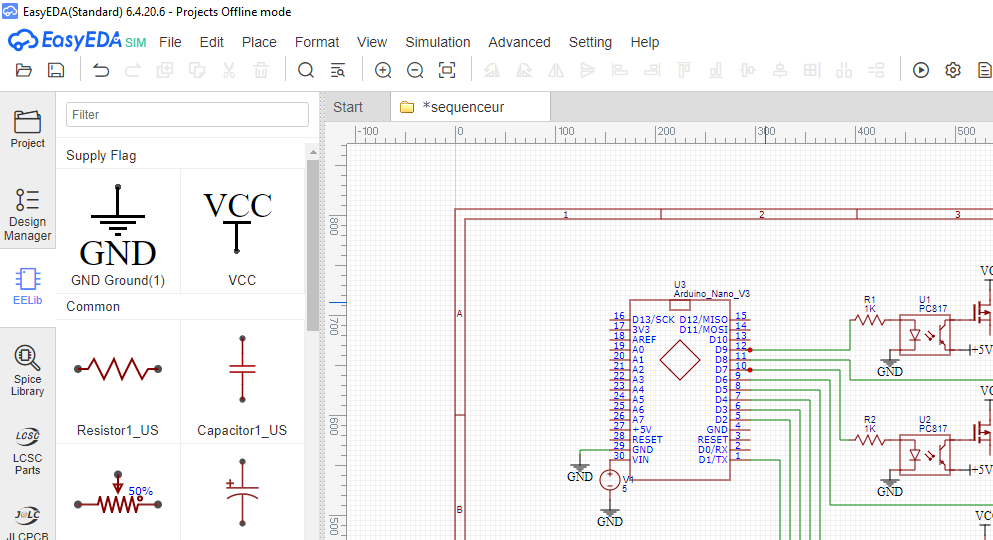

Hi, thx for your answer, but as i said, the Design menu, as well as the Tools and Fabrication menu doesn't exist on my menu bar... here's a screen cap:  So my problem's not solved... It's probably a very simple problem, but i don't find the reason why...

Aha, I think I see the problem! You are in Simulation mode! You can see the my image has the STD tag next to EasyEDA and yours has the SIM tag. Click on it. Switch it to Standard and you should be good. Although there might be things yo need to change in the schematic, like the voltage source symbols and other simulation things. I haven't really used the simulation part of the EDA, so I can't help with that. But you can change that to a regular +5V net and be good. Hopefully that sets you on a better path!

Ok!! Thank you very much ! I didn't know there was a simulation mode and didn't really have intention to use it... Now i can go on and finish my pcb, thx again, really appreciated your help.
