Two different design in one board ?
118 4
ahmedyerli 1 month ago

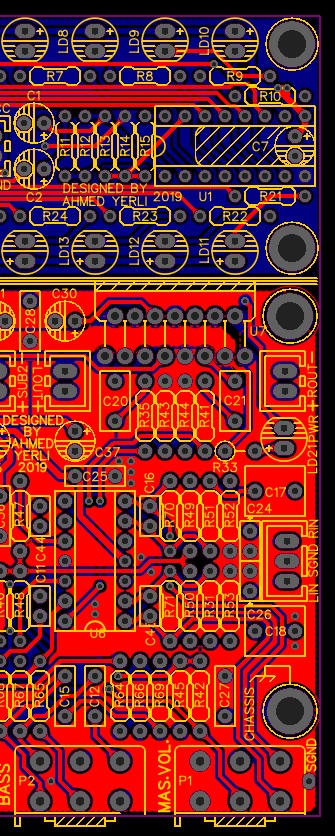

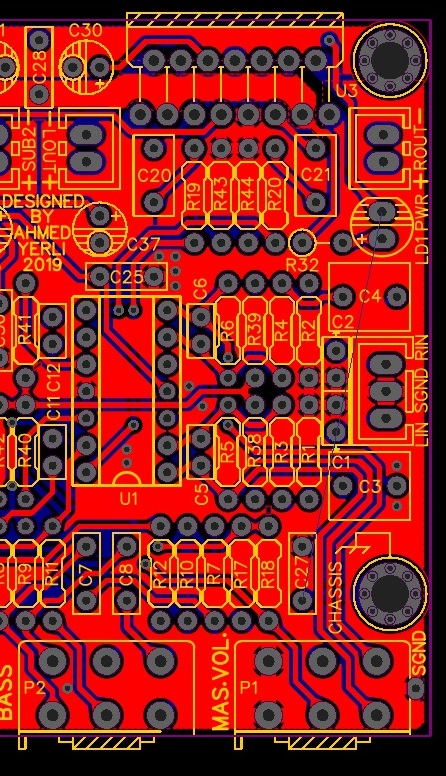

Hi all, I have a question that how can i do two pcbs in one board ? When i try to do it, all materials prefix name's chancing by automaticly as you can see below. The Easyeda thinks that there are two different pcbs and it should not be same prefix names or what? I want to cut the pcb by myself as two pieces. So is it possible to fix this situation? ![Adsız.jpg](//image.easyeda.com/pullimage/CCTG4xstSEpfZVsyNEp9TIlf83h8vjAvZrx1wM9Z.jpeg) ![Adsız2.jpg](//image.easyeda.com/pullimage/eqH3Ct3sVTu99zqXI1bMyCQBSHSfAotM5qBjeyjP.jpeg)
Comments
UserSupport 1 month ago
Hi [https://docs.easyeda.com/en/PCB/Panelize/index.html#Panelize-by-Manually](https://docs.easyeda.com/en/PCB/Panelize/index.html#Panelize-by-Manually)
Reply
ahmedyerli 1 month ago
Thanks for your helping i will try to do it.
Reply
andyfierman 1 month ago
@ahmedyerli, Pay special attention to step (4) in the link above: be careful in how you rebuild the plane areas and check them carefully.
Reply
ahmedyerli 1 month ago
Ok, i have tried it and it works properly like the s.s. ![Adsız.bmp](//image.easyeda.com/pullimage/4c39BD3EG69EQhqkEfUEjaHHXRMug0KMiBdPWeNZ.bmp)
Reply
