beginning of the coordinate grid
455 6
rumvit 4 years ago
The PCB is not at the beginning of the coordinate grid. How to set a position of PCB?
Comments
JLCPCBsupport 4 years ago
Hello ; you can edit the start and end points in the right hand panel of the design tool.
Reply
andyfierman 4 years ago
You can also set the canvas origin via Edit in the top toolbar.
Reply
andyfierman 4 years ago

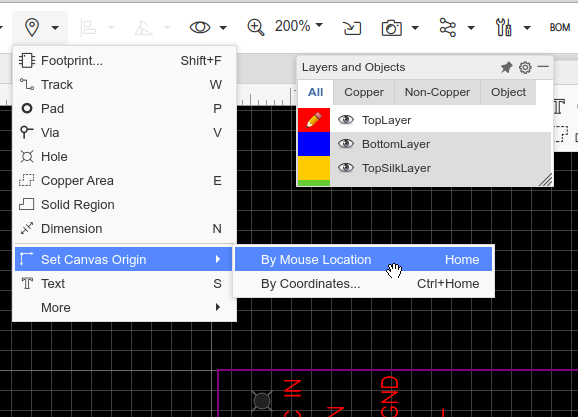

Sorry! Not **Edit**. **Place**: ![image.png](//image.easyeda.com/pullimage/ALXoSAouvvQ7h2pjWKTYCfMLtmyuTOaudyJhGlVq.png)
Reply
rumvit 4 years ago
thanks.Just what I needed
Reply
rumvit 4 years ago
Well. Why does this situation occur when ordering on JLCPCB? Keys and coordinates don't match![7.png](//image.easyeda.com/pullimage/MHrRFv3DF7mEyeqYxFjo59w8V8UPninVscuBhvKZ.png)
Reply
andyfierman 4 years ago
@rumvit, Please repost your last question as a topic in the JLCPCB category.
Reply
